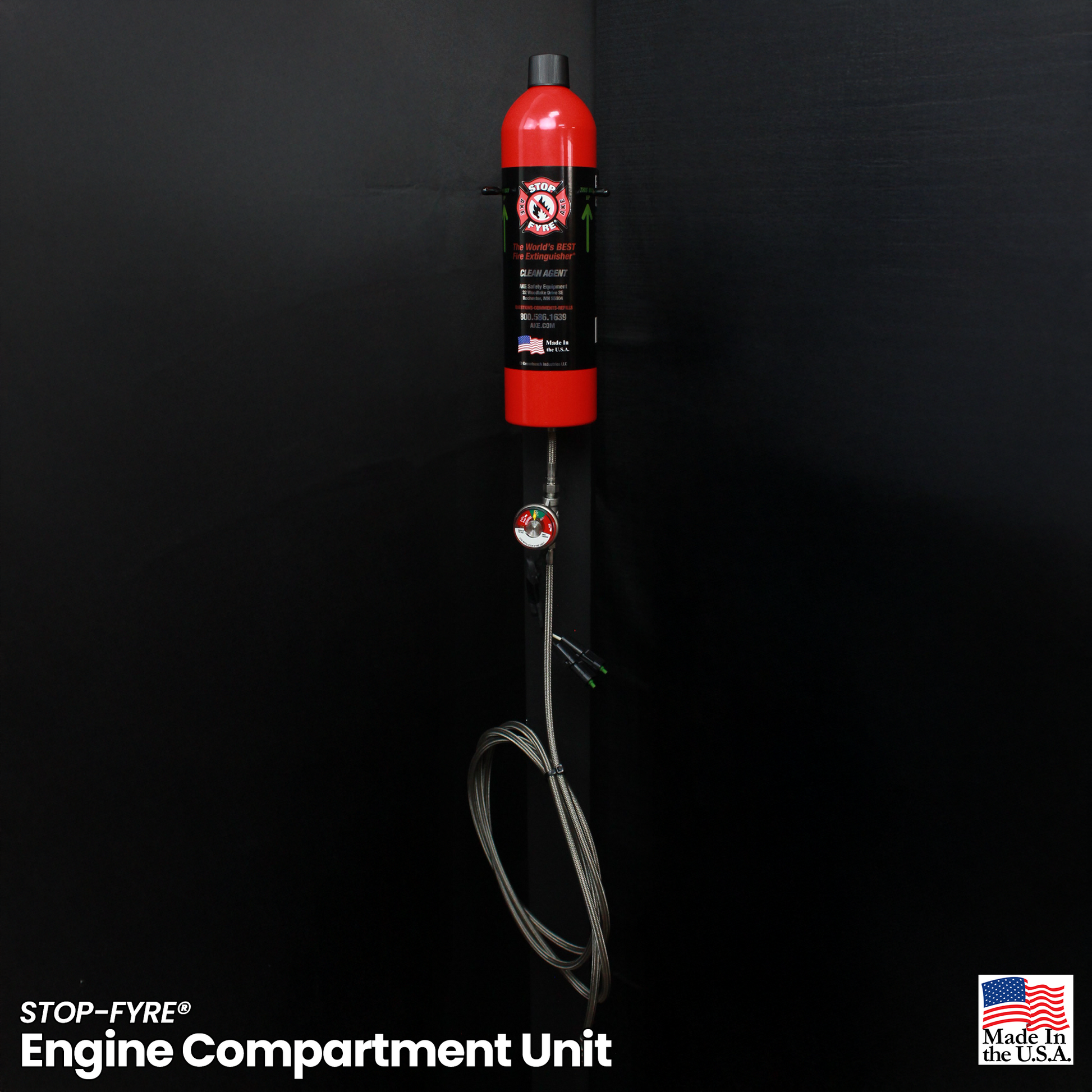

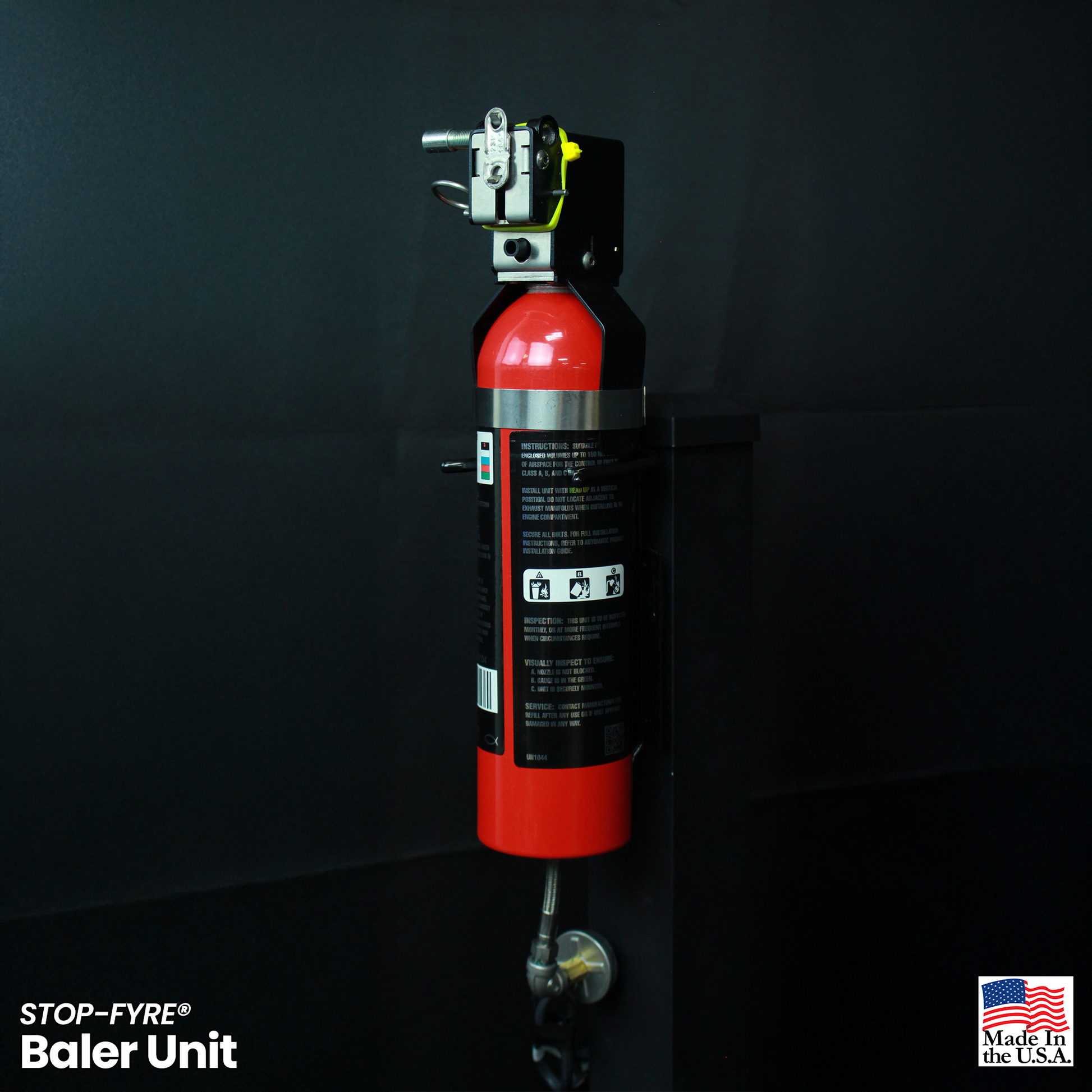

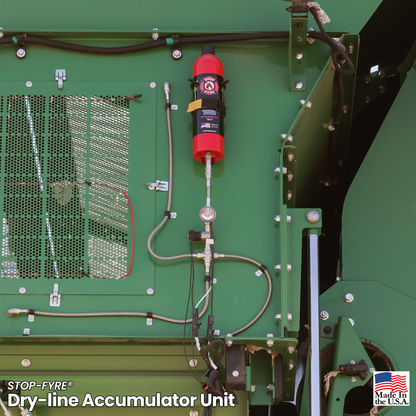

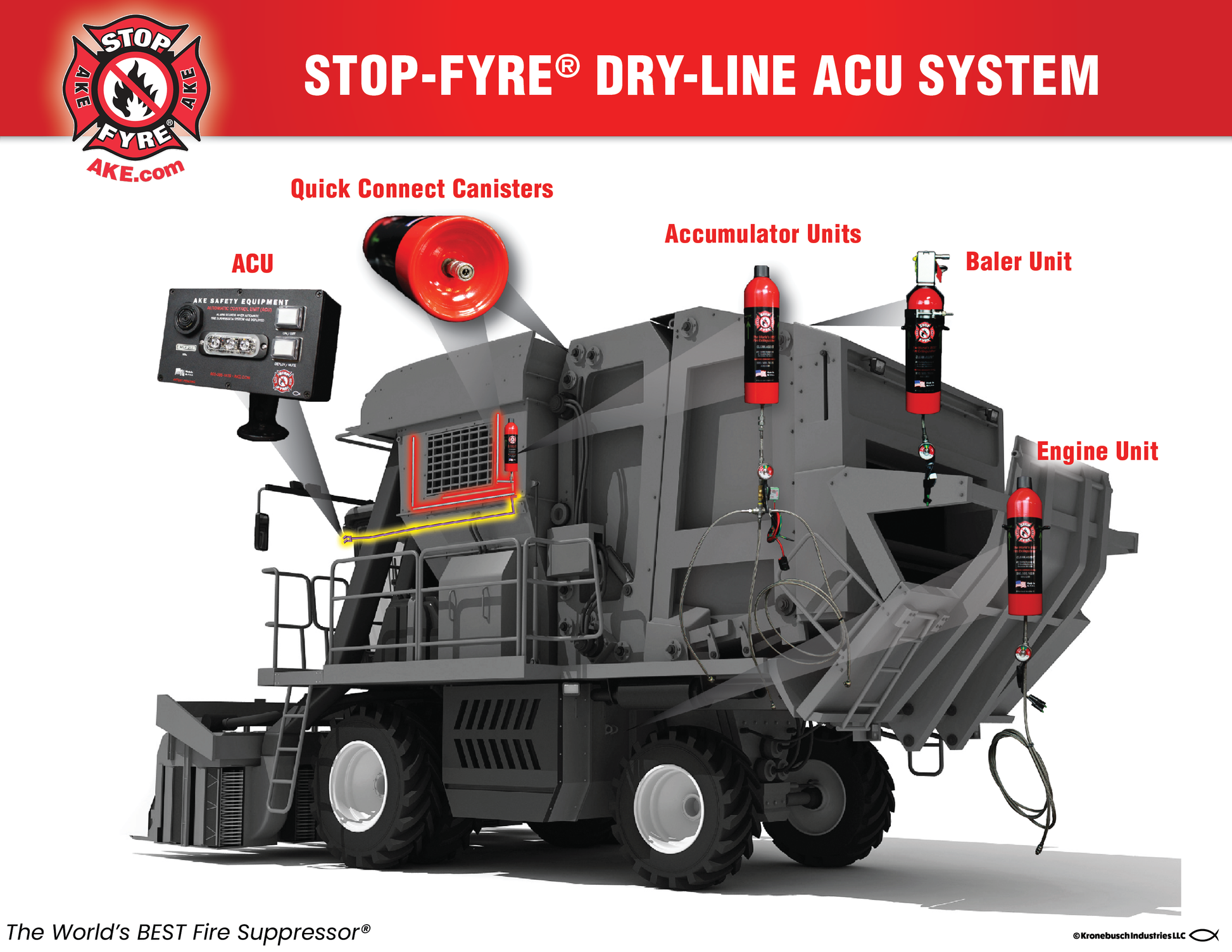

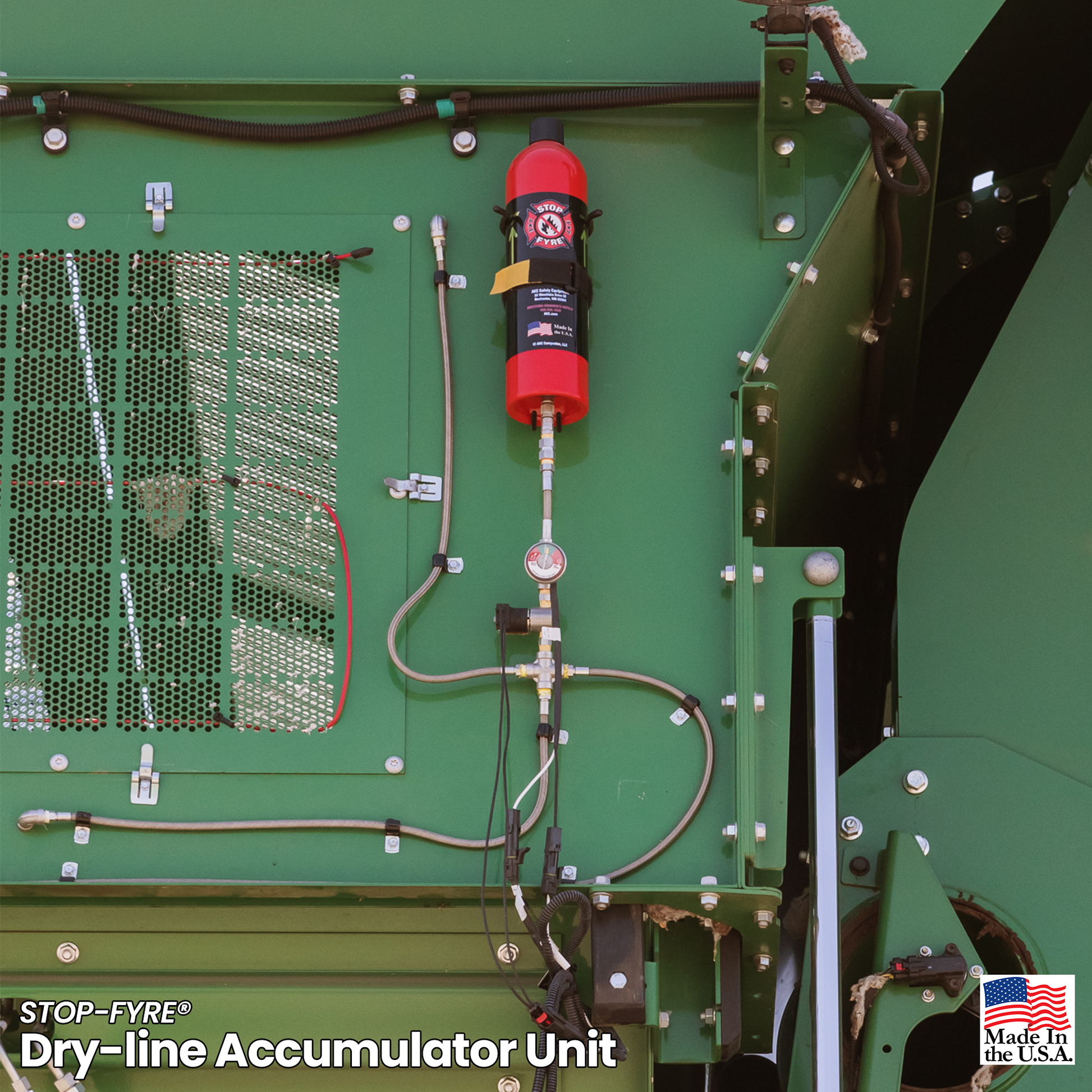

The STOP-FYRE® Dry-Line Automatic Control Unit (ACU) System includes two dry-line (quick connect) accumulator automatic units, one baler automatic unit, one engine compartment unit, stainless steel braided hoses with nozzles directed to the accumulator/baler/engine compartment, heat line sensors, and an ACU that notifies the operator when the system deploys. The system also comes with a manual deploy option.
This system utilizes heat line sensors that signal the ACU, which tells the solenoid to open and release the agent while simultaneously alarming the operator. Back up cans are recommended to have on hand along with additional sensors in case of fire.
Agent
STOP-FYRE®
Fire Fighting Power (FFP)
7 FFP / can *4 = 28 FFP Total
Canister Count
4 Cans Total: 2 Accumulator, 1 Baler, 1 Engine
Canister Height
12 inches
Canister Diameter
3 inches

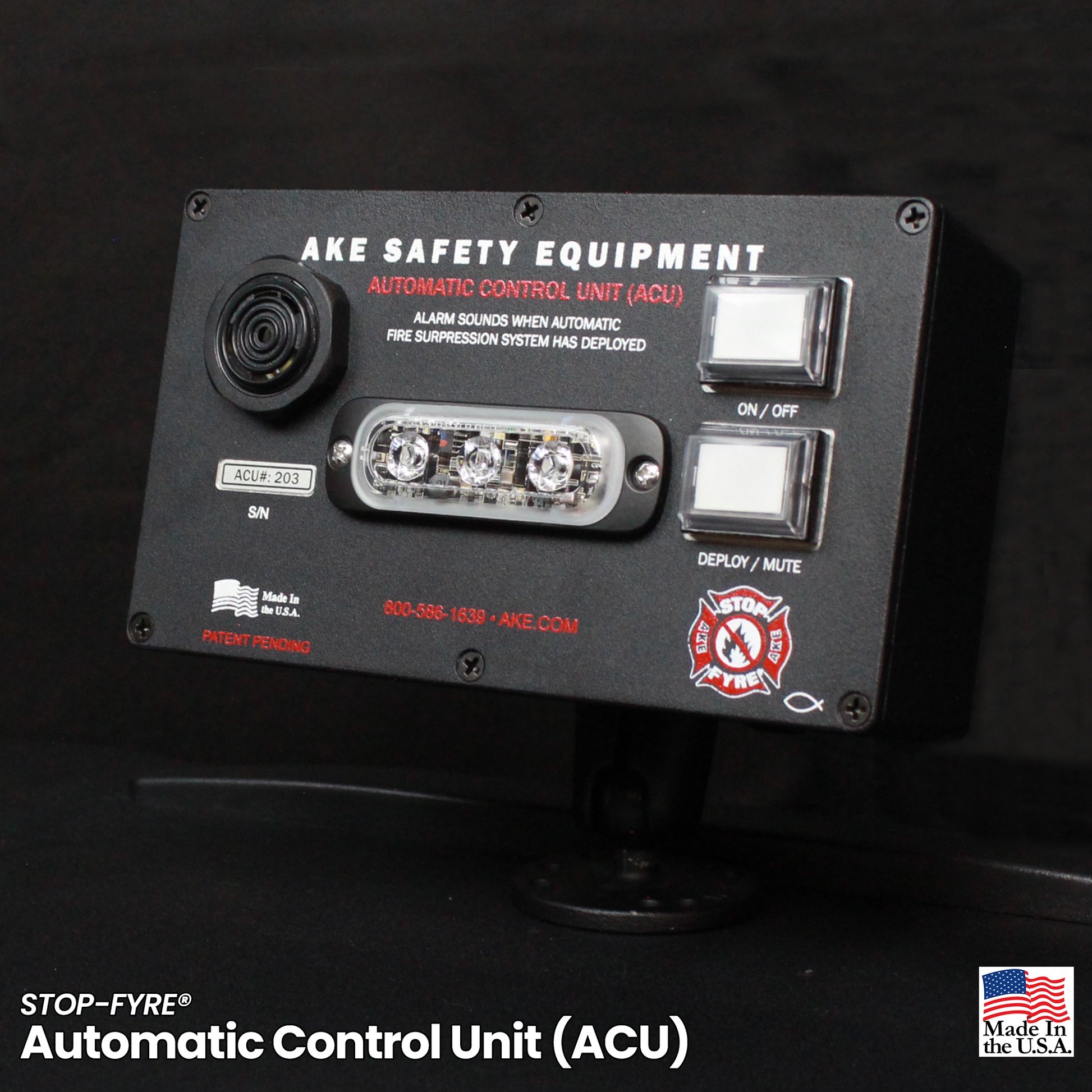

ACU
Automatic Control Unit
Stainless Steel Braided Hose
Applicable on JD7760, CP690, CP770, CS690, CS770
Refillable?

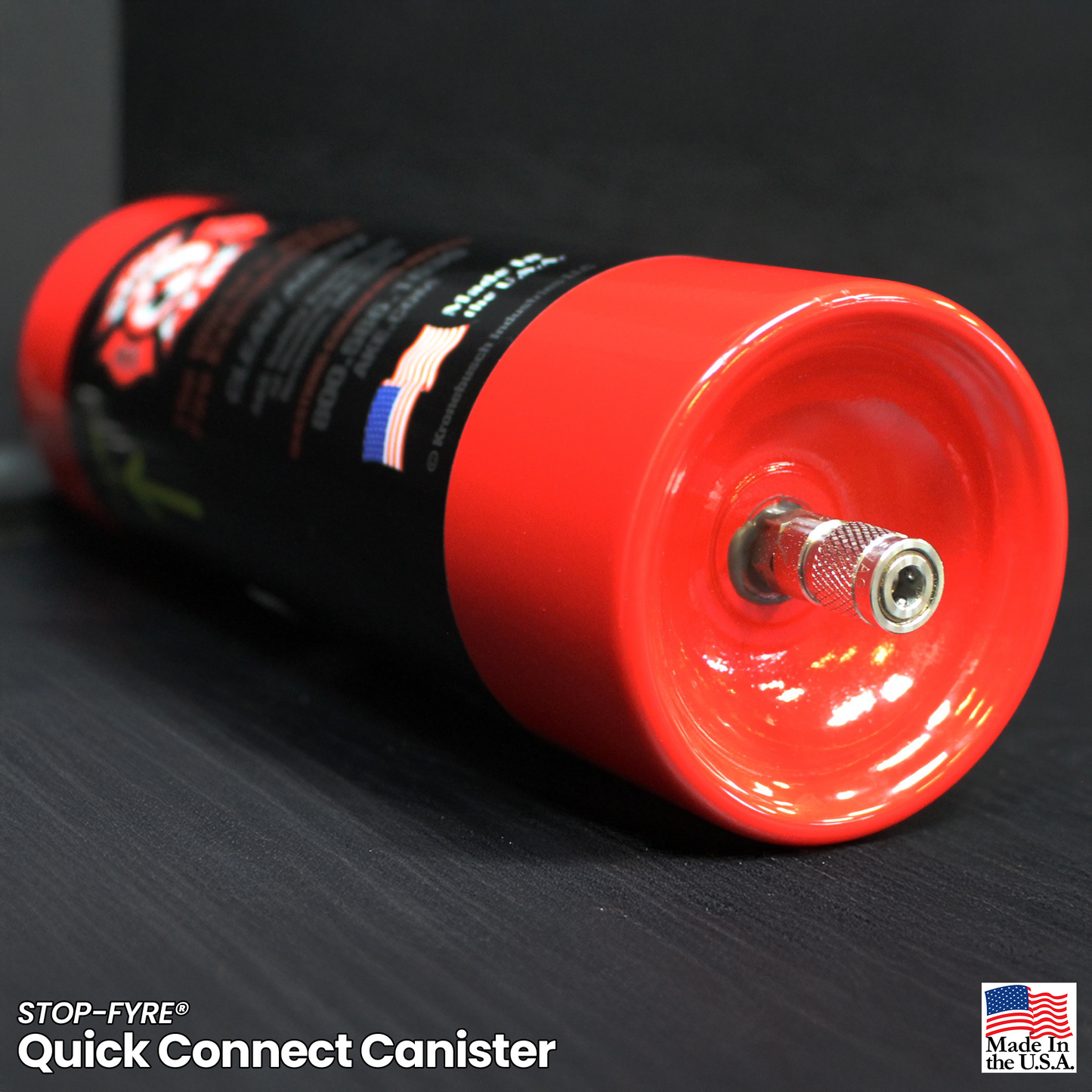

Yes, the quick connect canisters are easily field serviceable. Contact AKE Safety Equipment after any use or if unit appears damaged in any way.
