STOP-FYRE® Wet-line Audio Visual Warning System (AVWS)

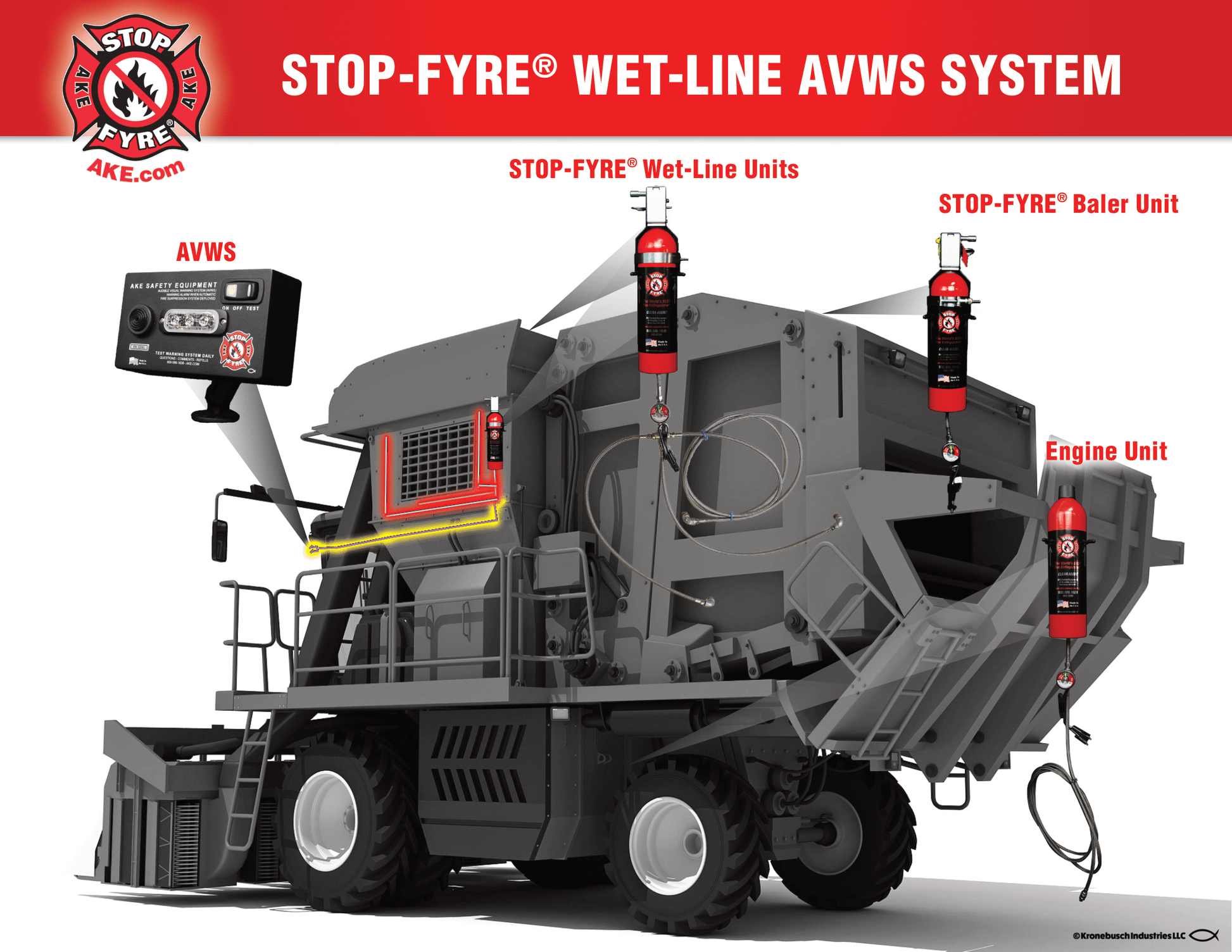

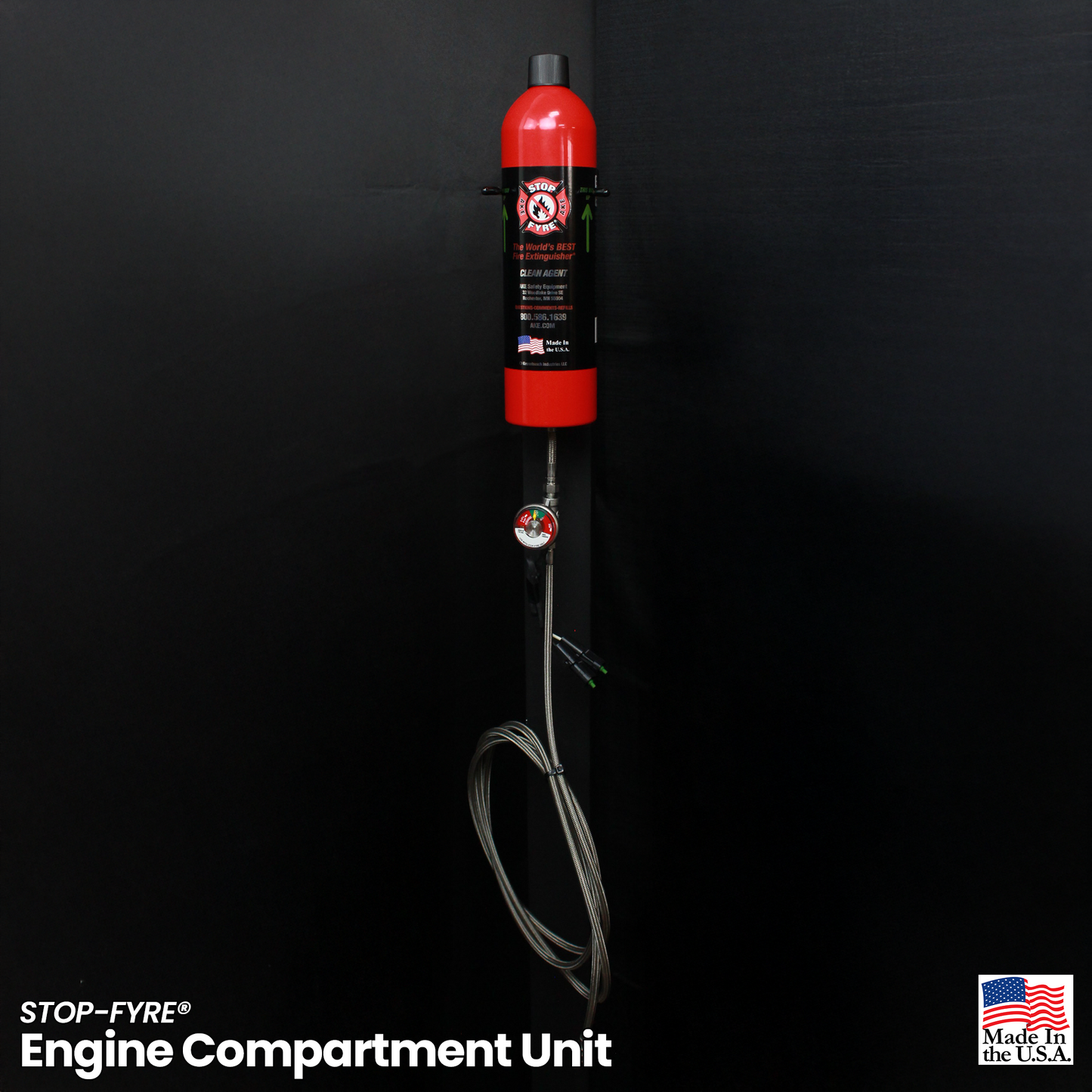

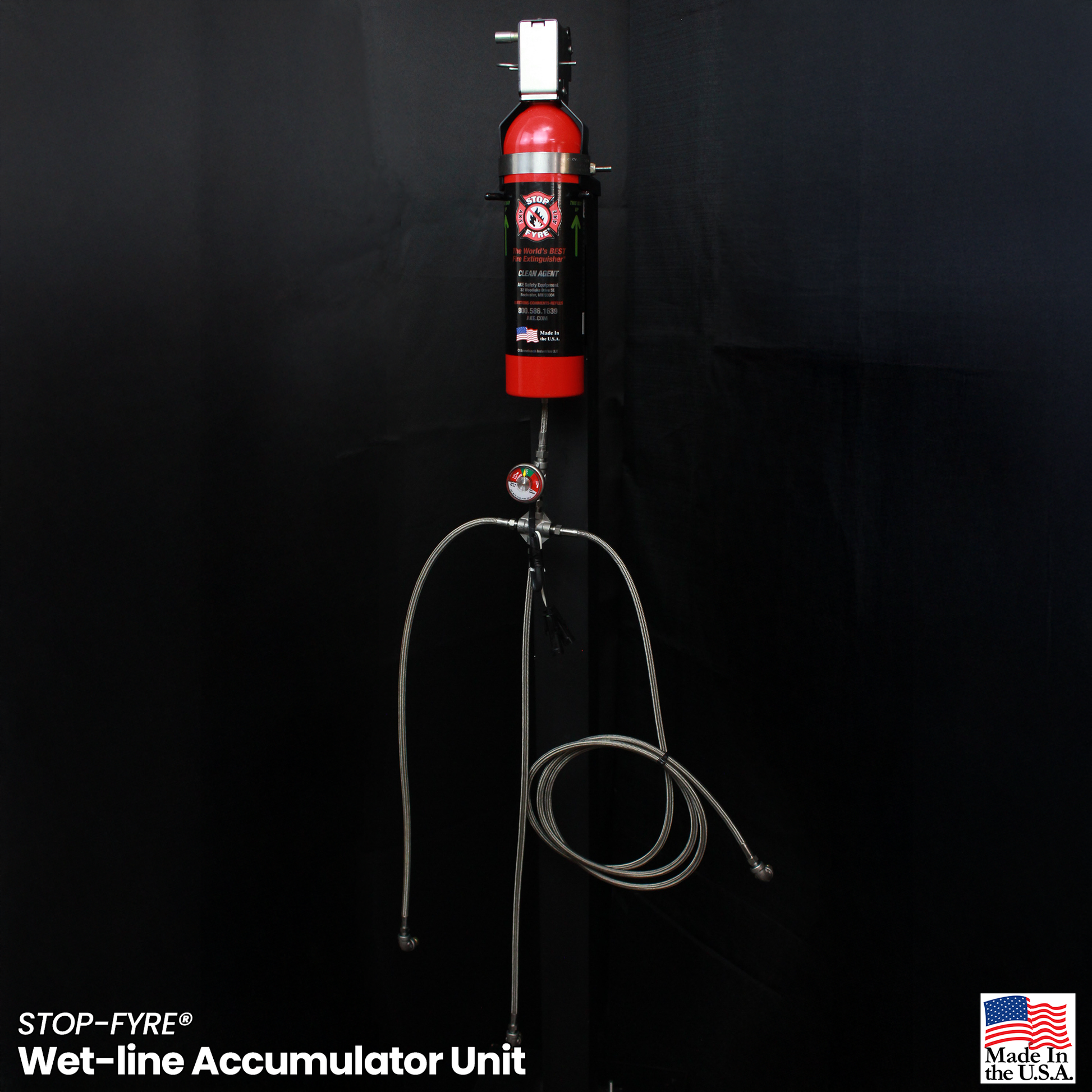

The STOP-FYRE® Wet-line Audio Visual Warning System includes two wet-line accumulator automatic units, one baler automatic unit, one engine compartment unit, stainless steel braided hoses with fusible plugs/links directed to the accumulator/baler/engine compartment, and an AVWS that notifies the operator when the system deploys. The system also comes with a manual deploy option.
This system utilizes Fusible Plugs / Links that will melt at the set temperature causing the automatic to deploy. Simultaneously, the gauge will send a signal to the AVWS which alerts the operator that the system has been deployed. Back up units are recommended to have on hand in case of fire.
Agent | STOP-FYRE® |
Fire Fighting Power (FFP) | 7 FFP / can *4 = 28 FFP Total |
Canister Count | 4 Cans Total: 2 Accumulator, 1 Baler, 1 Engine |
Canister Height | 12 inches |
Canister Diameter | 3 inches |

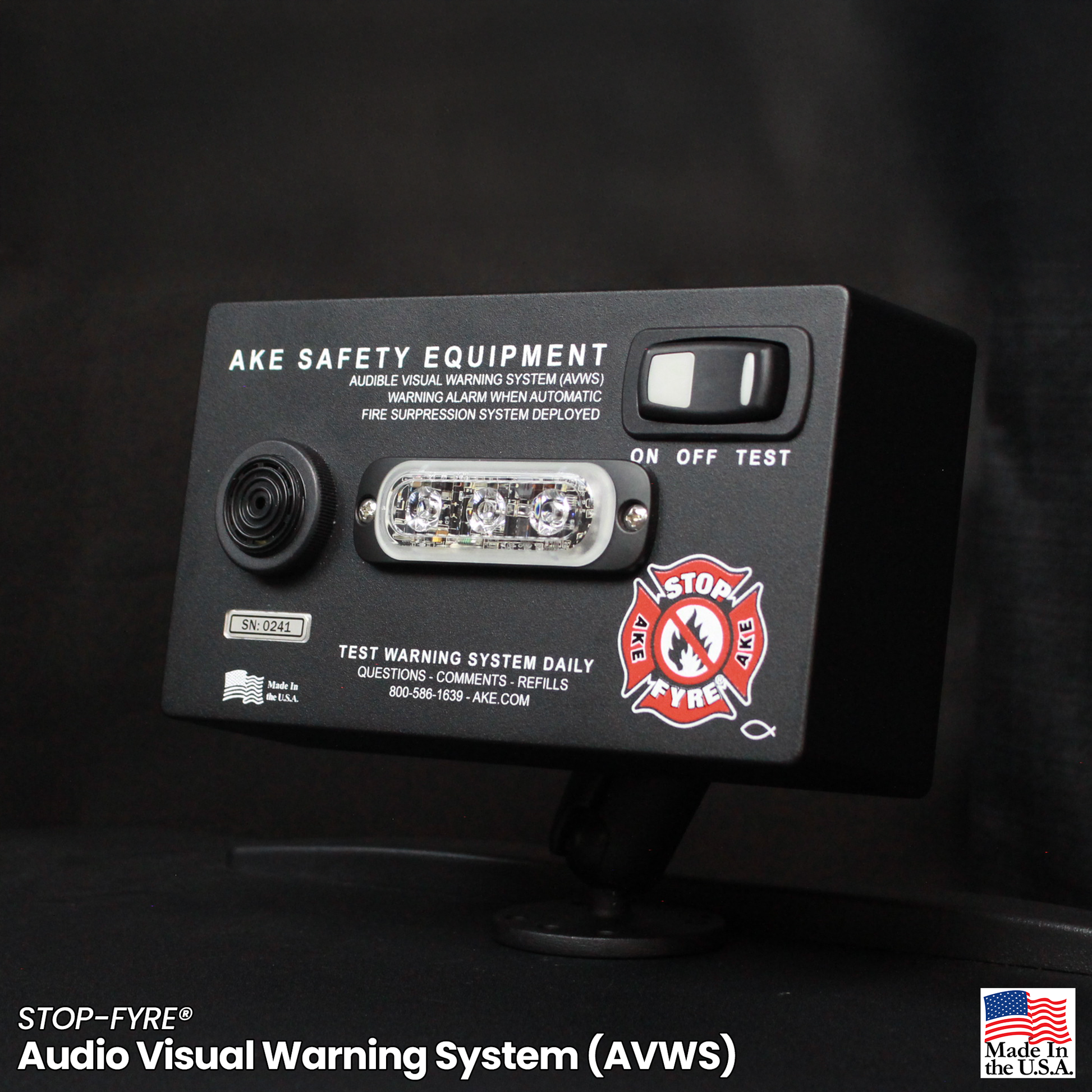

AVWS | Audio Visual Warning System |
Stainless Steel Braided Hose | Applicable on JD7760, CP690, CP770, CS690, CS770 |
Refillable? | Yes, the wet-line/baler units can be refilled. Contact AKE Safety Equipment for refill after any use or if unit appears damaged in any way. |
Mounting Bracket Included? | Yes and includes self-tapping screws. |
Effective Operating Temp. | -40°F to +120°F [-40°C to +50°C] |
Fusible Plugs / Fusible Links | 165°F Fusible Plugs / 165°F Fusible Links |
